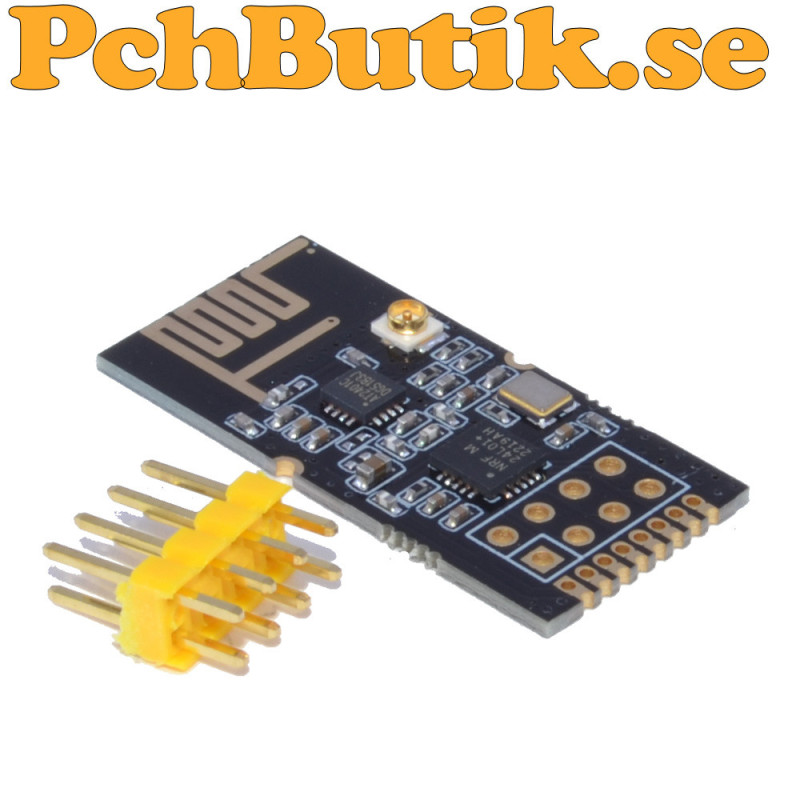

NRF24L01+PA+LNA 2.4 GHz Wireless Transceiver Module with Long Range

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The NRF24L01+PA+LNA is a high-performance 2.4 GHz wireless transceiver module designed for reliable long-range data communication. Based on the NRF24L01+ chip, it features both a Power Amplifier (PA) and a Low Noise Amplifier (LNA), providing significantly greater transmission range and improved receiver sensitivity compared to the standard module.

The module communicates through an SPI interface and is compatible with a wide range of microcontrollers and development boards, including Arduino, ESP32, STM32, and Raspberry Pi. It is well suited for wireless sensor networks, remote control systems, robotics, IoT applications, telemetry, and other embedded wireless projects.

For reliable operation, a stable 3.3 V power supply with adequate filtering is recommended, as the module requires higher current during transmission than the standard NRF24L01 version.

Facts.
Product type: Wireless transceiver module
Model: GT-24 NRF24L01+PA+LNA
Frequency band: 2.4 GHz ISM band
Communication interface: SPI
Operating voltage: 2.0 to 3.6 V DC
Range: Up to approximately 1100 m line of sight
Amplifiers: PA and LNA
Operating temperature: -40 Celsius to +85 Celsius
Operating humidity: 10% to 90% RH
Storage temperature: -40 Celsius to +125 Celsius
Board size: 14.5 × 30.3 mm
Mini board size: 14.5 × 18.3 mm
Compatible with: Arduino, ESP32, STM32, Raspberry Pi, and other SPI devices
Applications: Wireless sensors, robotics, IoT, telemetry, and remote control

Included.
1 pc module.

About the product.
Weight: approx 6 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 3168
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-08-03
