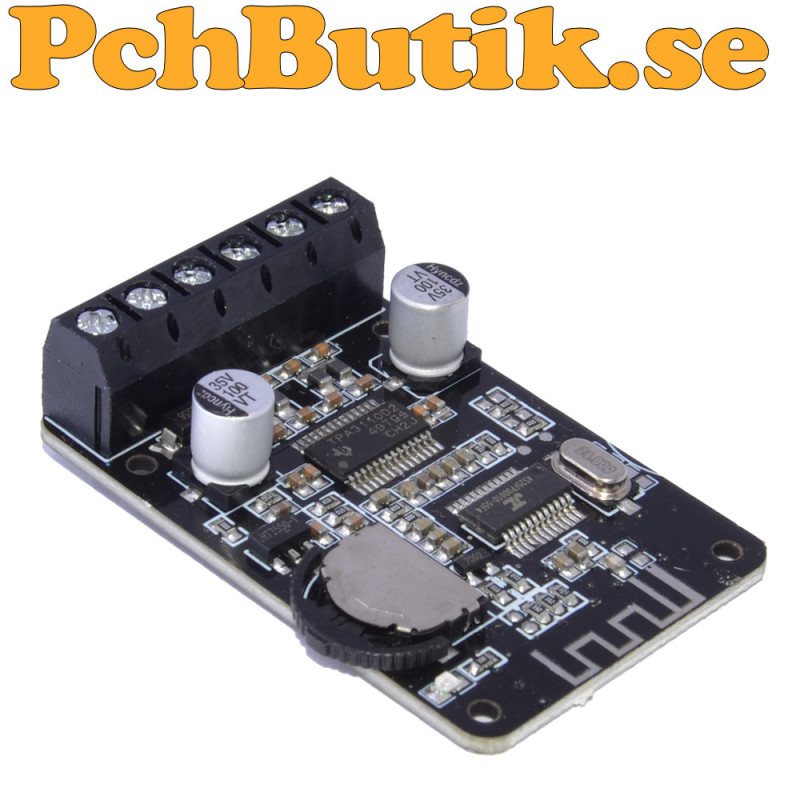

XY-P15W stereo amplifier board with Bluetooth, acrylic sheets and screw set

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
XY-P15W is a stereo power amplifier board with Bluetooth 5.0 for wireless audio transmission and built in audio and power amplification. The board is suitable for building or upgrading Bluetooth speakers and active stereo audio systems.

Bluetooth has a range of up to approximately 15 meters with a clear line of sight. Audio is reproduced in stereo with separate left and right channels.

The board uses the Jieli AS25FP00010-55F4 as the Bluetooth and audio circuit. The circuit handles Bluetooth audio, audio processing and line audio signal functions. The built in power amplifier allows speakers to be connected directly to the module.

The output power depends on the supply voltage and speaker impedance. At 12 V and 4 ohm the output power can be 16 W per channel. At 16 V and 8 ohm the output power is 15 W per channel and at 20 V and 8 ohm up to 20 W per channel. At 24 V and 8 ohm up to 30 W per channel can be achieved with suitable cooling.

The module has a multifunction switch that can be moved up and down and also pressed. It is used for various audio functions such as volume control, music selection and playback depending on the module functions and firmware.

Two acrylic sheets are included and provide protection for the circuit board. A screw set is also included for mounting the acrylic sheets and the module.

Facts

Facts.
Product name: Bluetooth stereo audio power amplifier board
Model: XY-P15W
Bluetooth circuit: Jieli AS25FP00010-55F4
Bluetooth version: 5.0
Bluetooth range: approximately 15 meters with clear line of sight
Supply voltage: DC 8 to 24 V
Audio output: Stereo
Output power at 1 kHz and 12 V 4 ohm: 16 W x 2
Output power at 1 kHz and 12 V 8 ohm: 10 W x 2
Output power at 1 kHz and 16 V 8 ohm: 15 W x 2
Output power at 1 kHz and 20 V 8 ohm: 20 W x 2
Output power at 1 kHz and 24 V 8 ohm: 30 W x 2 with cooling fin
Recommended speaker impedance at 8 to 12 V: 4 ohm
Recommended speaker impedance at 8 to 24 V: 8 ohm
Alternative speaker impedance: 16 ohm
Recommended speaker power: 30 to 150 W
Reverse polarity protection: Yes
Short circuit protection: Yes
Thermal protection: Yes
Switch: Up and down switch with push function
Output channels: Left and right
Protection sheets: 2 acrylic sheets
Mounting parts: Screw set
Application: Bluetooth speakers and active stereo systems

Included.
1 pc module.

About the product.
Weight: approx 26 gram.
