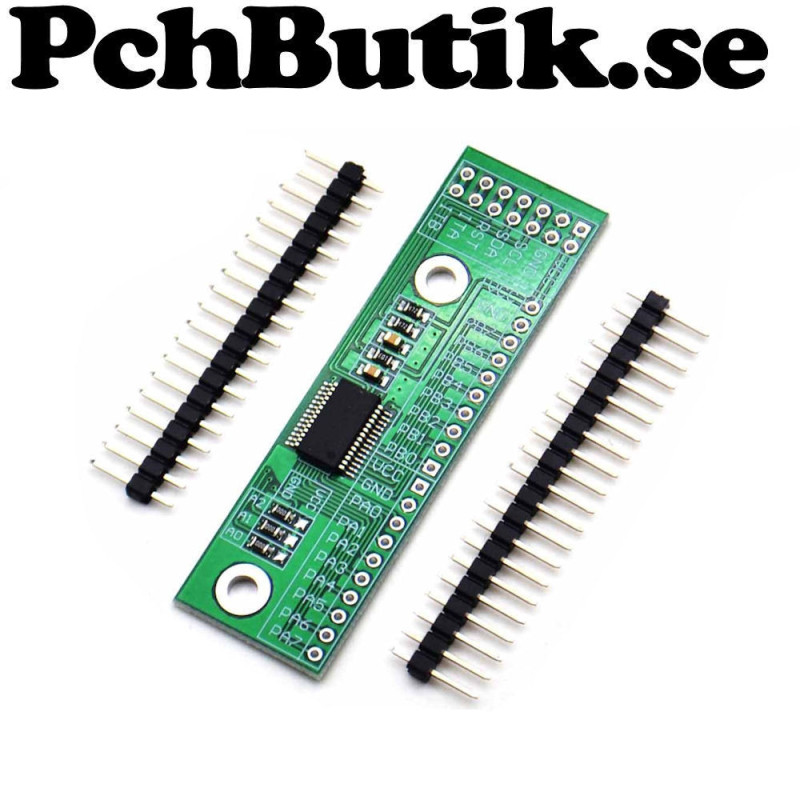

MCP23017 I2C 16 bit IO expansion board with mounting holes

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
This MCP23017 expansion board allows you to increase the number of digital input and output pins using I2C communication. The module converts parallel data into serial signals and integrates easily into microcontroller projects. It includes a built in power on reset function and two programmable interrupt outputs for advanced control. GPIO pins can be individually configured with polarity and pull up resistors making it flexible for automation and control systems.

Facts.
Model: MCP23017
Interface: I2C
IO pins: 16
Operating voltage: 3.0 to 5.5 V
Max I2C frequency: 1.7 MHz
Current consumption: 1 µA
Temperature range: -40 to 85 C
Size: 65 x 19 mm
Mounting: M3 holes
Reset: Power on reset
Interrupts: 2 programmable outputs
Output current: up to 25 mA
Pull up resistors: Supported

Included.
1 pc module.

About the product.
Weight: approx 12 gram.
