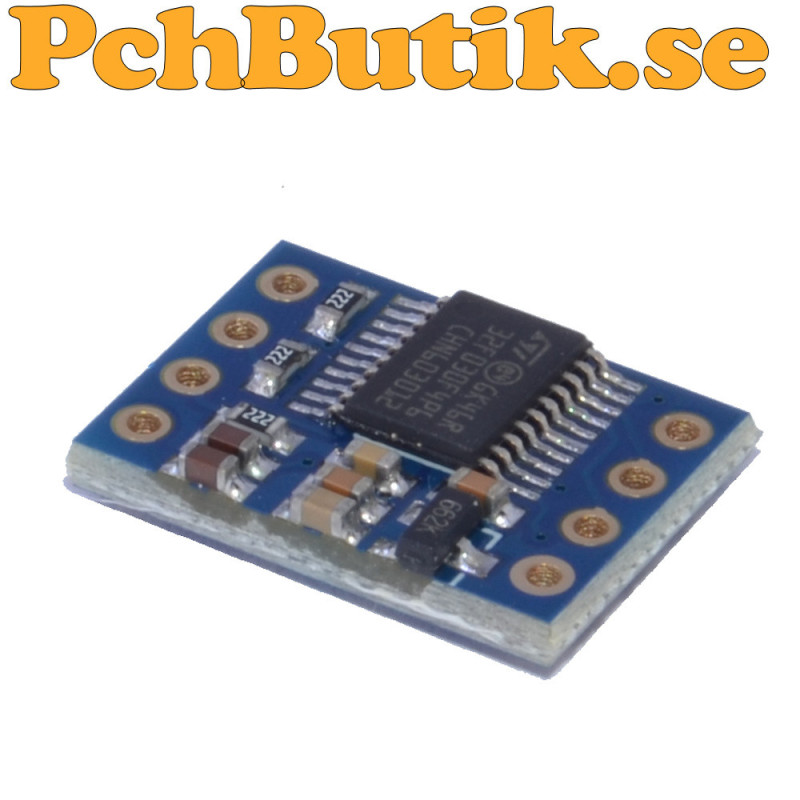

GY-25 MPU-6050 tilt angle module with serial communication and direct angle data

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The GY-25 is a compact tilt angle module based on the MPU-6050 and an integrated microcontroller. The module measures movement and tilt using a 3-axis accelerometer and a 3-axis gyroscope and processes the angle data internally.

Unlike a standard MPU-6050 breakout board, the connected microcontroller does not need to perform the complete tilt angle calculation itself. The GY-25 can transmit calculated angle data directly through serial communication. The available values are Yaw, Roll and Pitch with a resolution of 0.01 degrees.

The module can be used in Arduino projects, robotics, model building, balancing systems, measuring equipment and other applications where tilt and movement need to be measured.

The GY-25 provides connections for serial communication as well as SDA and SCL for I2C. When using I2C communication, the module can be used to read raw sensor data. With serial communication, calculated angle values can be read directly from the module.

The supply voltage is 3 to 5 V and the compact module size makes it easy to integrate into smaller constructions. The module also provides BOOT and RESET connections.

Serial communication can be configured for 9600 or 115200 baud depending on the module setting. This makes the module easy to connect to Arduino, ESP32 and other microcontroller systems.

Facts.
Model : GY-25
Sensor : MPU-6050
Sensor function : 3-axis accelerometer and 3-axis gyroscope
Microcontroller : Integrated
Supply voltage : 3 to 5 V
Communication : Serial UART and I2C
Serial speed : 9600 or 115200 baud
I2C function : Raw data reading
Direct angle data : Yaw, Roll and Pitch
Yaw angle range : -180 to 180 degrees
Roll angle range : -180 to 180 degrees
Pitch angle range : -180 to 180 degrees
Angle resolution : 0.01 degrees
Module size : 15.5 x 11.5 mm
Pin spacing : 2.54 mm

Included.
1 pc module.

About the product.
Weight: approx 5 gram.
